SRLP100 PRO™ retract bow/stern thruster 12V
100kg variable thrust, low profile
-
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
-
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
-
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction. -
INTELLIGENT POWER CONTROL
Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.
-
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
-
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
-
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
-

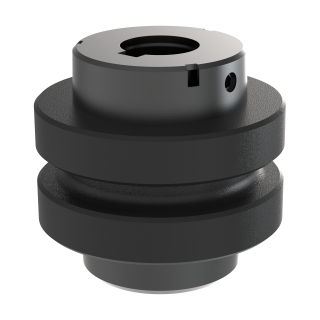

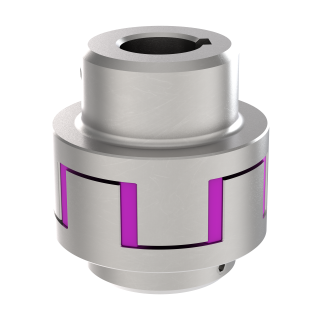

FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
-

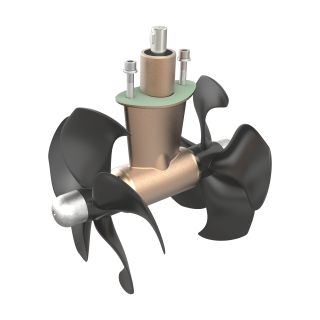

TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
Item code: SRLP100/185T-12V
SRLP100 PRO™ with variable speed control is a sturdy retract thruster with 100-116 kg thrust, suitable for boats between 35-55 feet.
The thruster is mounted on a flange and has a fast deployment and retraction time. The unit is compact with bevel gears, making it perfect for boats with limited height space.
A remote control is a popular accessory. See some of the important product and safety features below.
Retractable thrusters cause no drag
If you have a performance boat, sail, or power, and you're worried about the smallest amounts of drag, a retractable thruster is a perfect solution for you.
Sleipner's retractable thrusters work with all types of propulsion systems – DC, AC, and hydraulic – and can be installed in the bow and the stern of the boat. Available as standard (on/off) or PRO™ with variable speed control extending from 80 kg to 650 kg of thrust.
Like all Sleipner products, the retractable thrusters are made with high safety standards. Safety is important in product design, from build quality to ease of installation, to ensure long-term reliability.
There are three versions of the retractable thrusters, one designed to be directly molded in and two designed to be mounted on a flange. The flange can be a mold-in base from Sleipner, or boat builders can use materials suitable for their hull or as part of their hull design.
The flange-mounted models have the thruster unit placed in a casing that can be bolted to a base. This makes installing the thrusters in hulls made from different materials easier. It also simplifies series production, as it avoids the need to mix laminating and engineering jobs.
Quick deployment
The thrusters with a tunnel diameter of 185 mm use one fast and powerful actuator. In comparison, the models with a diameter of 250 mm and 386 mm have two actuators to handle the increased forces while maintaining the same exceptionally fast deployment time.
Features
- Fitted as bow and/or stern thruster
- Quiet operation
- Plug & Play S-Link™ two way communication control cable wiring
- Motor assembly rigid mounted on retracting casing: no moving parts during retracting operation
- Compact size
- Reliable retracting mechanism avoids sticking
- Fast deployment
- Easy-to-use control panel with status feedback from thruster
- Available as PRO with variable speed control
The retract mechanism
The unique design of the underwater mechanism has only a few, but very solid parts, contributing to the stability of the unit. The unit's design makes the thruster as compact as possible while enabling safe use of heavier motors on more powerful units. The vertical installation of the motor (SRV) reduces shock forces on the unit in extreme waves compared to motors mounted at an angle.
Properties
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction.
INTELLIGENT POWER CONTROL
Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.
OVERHEAT PROTECTION
When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.
GALVANIC SEPARATION
Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.
SEALED DRIVE LUBRICATION
The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
TWIN PROPELLERS
Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.
Power | Value |
---|---|
Power Source | Electric |
Voltage | 12V DC |
Power Output | 6.3kW / 8.4hp |
Thrust at 12V | 116kg / 256lbs |
Thrust at 10.5V | 100kg / 220lbs |
Current Draw | 740A |
Min. Battery CCA (DIN) | 750 |
Min. Battery CCA (SAE) | 1425 |
Min. Battery CCA (EN) | 1320 |
Recommended fuse | ANL 500 |
Operational Intention | Value |
---|---|
Ideal Vessel Class | Motor boat, Sail boat |
Ideal Vessel Size | 12-17m / 35-55ft |
Bow Capability | Yes |
Stern Capability | Yes |
Retractable Capability | Yes |
External Mounting Capability | No |
Tunnel Capability | No |

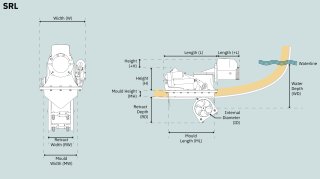

Measurements | Value |
---|---|
(H) Height | 243mm / 9.56in |
(+H) Additional Height | 129mm / 5.07in |
(L) Length | 561mm / 22.09in |
(+L) Additional Length | 287mm / 11.29in |
(W) Width | 359mm / 14.12in |
(ID) Internal Diameter | 185mm / 7.28in |
(WD) Water Depth | 185mm / 7.28in |
(RD) Retract Depth | 276mm / 10.85in |
(RW) Retract Width | 195mm / 7.66in |
(MW) Mould Width | 257mm / 10.11in |
(MH) Mould Height | 62mm / 2.43in |
-
CE Declaration of conformity (Doc) - DC - thrusters
Conformity CertificateEnglishpdf -
DWG.fil SRL100/185T-12V - Retract thruster open - metadata
CAD FileEnglishdwg -
DXF.fil PPC 800
CAD FileEnglishdxf -
DWG.fil PPC 800
CAD FileEnglishdwg -
IGS.fil PPC 800 (simple version)
CAD FileEnglishigs -
Product specification sheet_DC_thrusters
Product sheetEnglishpdf -
XT.fil SRL100-185T-12V Retractable thruster- Sleipner - closed simplified
CAD FileEnglishx-t -
STP.fil SRL100-185T-12V Retractable thruster- Sleipner - closed simplified
CAD FileEnglishstp -
XT.fil SRL100-185T-12V Retractable thruster- Sleipner - open simplified
CAD FileEnglishx-t -
STP.fil SRL100-185T-12V Retractable thruster- Sleipner - open simplified
CAD FileEnglishstp -
STP.fil PPC 800 (simple version)
CAD FileEnglishstp -
Product specification sheet PPC 820_520
Product sheetEnglishpdf -
Installation Manual, SR SE Pro L&V (SRL/V-P80, SRL/V-P100)
Installation ManualEnglishpdf -
User Manual, SR Pro and SR Pro ignition protected (SRP, SRP IP)
User Manualpdf
SRLP100 PRO™ retract bow/stern thruster 12V

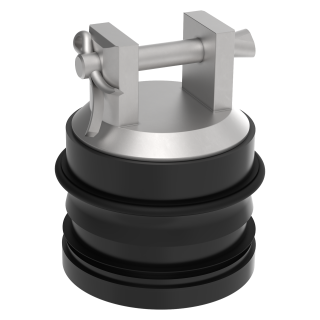

Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Brushes for motor (kit)**
Brush springs for motor (kit)**
Electric motor

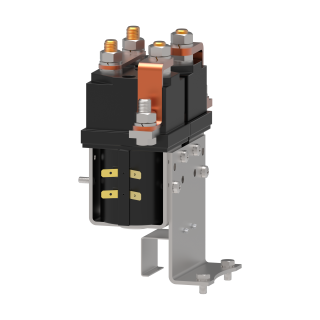

Complete solenoid kit
Solenoid Cover

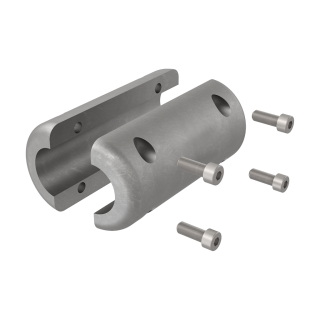

1 Anode, aluminium SE60/80/100

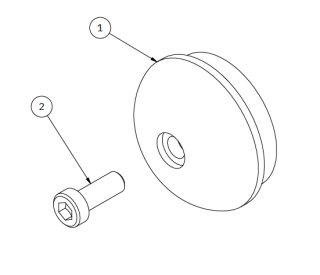

Anode, aluminium
Bolt - DIN 6912 - M6 x 16

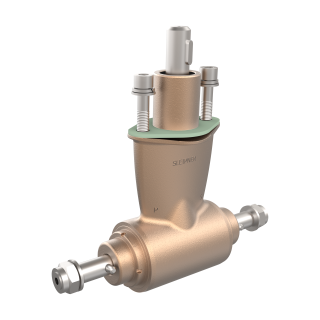

2 Gearleg SE80/100
3 Solenoid bracket kit
DIN7985 M5x8 + DIN6797 M5
DIN 933 - M6 x 12
DIN 6798 - A 6,4
Bracket for solenoid
Relay Clip
DIN 7337 - A3,2 x 8
4 Solenoid SE100/130 12V
DIN 913 - M5 x 16

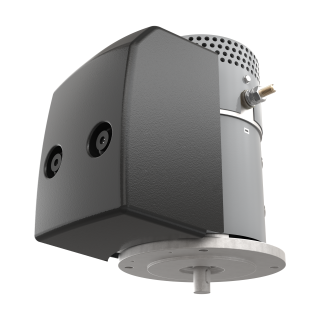

5 Electric motor SEP100 12V
Electric motor
Uninsulated cable lug ( B 1457 H 8 )
DIN 933 - M6 x 12
DIN 6798 - A 6,4
Brushes for motor (kit)
Brushes spring for motor (kit)
Temp switch
6 Horizontal shaft SRV 185mm
DIN EN ISO 1234 - 3,2x20
Lifting arm complete BB
Packing box
O-ring
Locking nut
Sleeve bearing Ø32 ø28 L20
Seal kit horisontal shafts
Sliding washer
DIN EN ISO 1234 - 3,2x33
Thrust washer
DIN EN ISO 1234 - 3,2x12
Shaft for sensor
7 Gearleg SE80/100 w/out propeller
DIN 912 - M8 x 55
DIN 127 - A 8
DIN 125 - A 8,4
Drive pin
Propeller washer SS2324
DIN 985 - M12x1,75
8 Solenoid cover kit SE100/130-12V
Solenoid cover
