Gearlegs and brackets

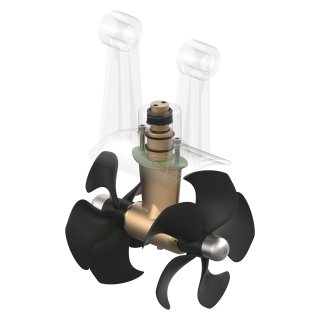

Gearleg SRV300 replacement kit
Item code: SM170664
| Product weight | Value |
|---|---|
| Net weight | 9.2826kg / 20.46lbs |
| Sparepart for | Value |
|---|---|
| Accessories, components and spare parts > For thrusters only > Tunnels > Retract Tunnels | SM168120 |
-
DNV Type Approval Tunnel thruster
Product Specification Sheets, Conformity CertificateEnglishpdf
Gearleg SRV300 replacement kit
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Bushing for drive pins
Kits
-
SM143716 20 1180 A
-
SM906379 113048
-

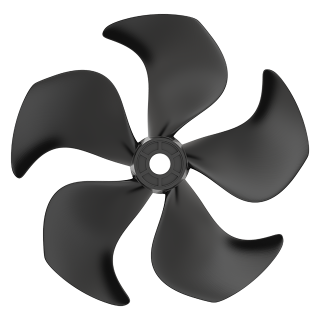

Propeller kit SE250/300 5bl Q-Prop™SP130943
-

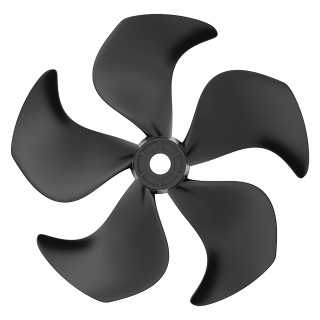

Propeller kit SE250/300 RH 5bl Q-Prop™SP130945

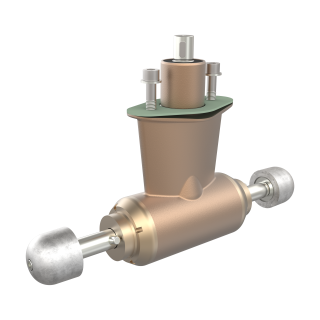

1 Gearleg SRV300TC w/out propeller
DIN 912 - M10 x 60
DIN 127 - A 10
DIN 125 - A 10,5

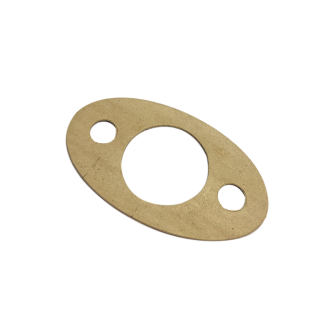

Bolt w/copper gasket
DIN 125 - A 17
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A

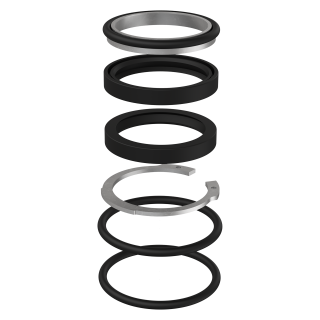

2 Service kit retract 300mm
Wyper ring
O-ring 41,28x3,53
DIN 3760 - AS - 40 x 50 x 7 - NBR - Stainless
Inverted Internal Circlip DIN 5008 50x2
O-ring Ø50x4

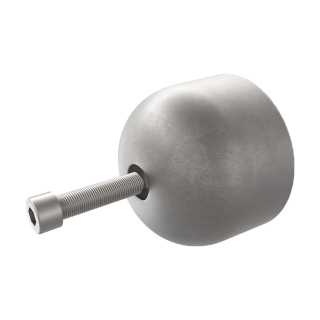

3 Anode kit, aluminium aloy (Al-Zn-In)
Anode - aluminium
Hex socket cap screw
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
