Thrusters

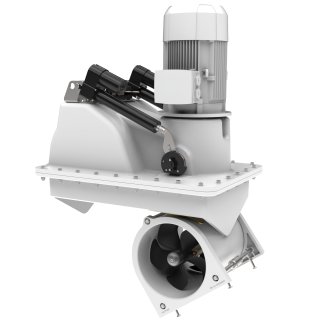

SRAC320 retract thruster Ø300mm 400V, low harmonic
320kg thrust
Item code: SRAC320/300TC-4L
SRAC320 is a 400VAC sturdy retract thruster with 320 kg of thrust, suitable for boats between 72-110 feet/ 22-34 meters. It can be mounted as a bow or stern thruster.
The thruster is mounted on a flange and has a fast deployment and retraction time.
| Main power | Value |
|---|---|
| Power supply | 400V AC |
| Features | Value |
|---|---|
| Q-Propeller | Yes |
| Physical properties | Value |
|---|---|
| Thruster Series | SR-series |

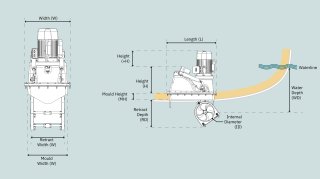

| Dimensions | Value |
|---|---|
| (H) Height | 453mm / 17in |
| (+H) Additional Height | 225mm / 8in |
| (L) Length | 843mm / 33in |
| (+L) Additional Length | 746mm / 29in |
| (W) Width | 580mm / 22in |
| (+W) Additional Width | 483mm / 19in |
| (ID) Internal Diameter | 300mm / 11in |
| (WD min.) Minimum Water Depth | 390mm / 15in |
| (TL min.) Minimum Tunnel Length | 415mm / 16in |
| (RD) Retract Depth | 456mm / 17in |
| (RW) Retract Width | 415mm / 16in |
| (MW) Mould Width | 580mm / 22in |
| (ML) Mould Length | 743mm / 29in |
| (MH) Mould Height | 115mm / 4in |
| (HT) Hull Thickness | 115mm / 4in |
| Installation capability | Value |
|---|---|
| Bow Capability | Yes |
| Stern Capability | Yes |
| Retractable Capability | Yes |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel size | 22-34m / 72-111ft |
-
