Thrusters

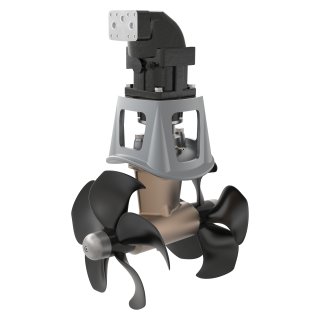

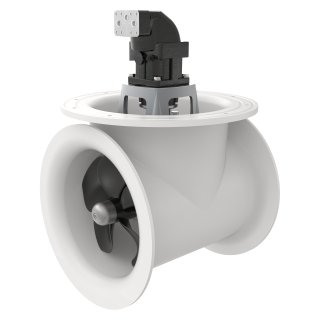

SH550 tunnel thruster hydraulic Ø386 BA60

550kg thrust, 60cm³, bent axis

  • S-LINK™ S-LINK™
    S-LINK™

    S-LINK™

    S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.

    • Compact and waterproof plugs
    • Keyed and color-coded connectors to ensure correct and easy installation
    • Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
  • PRO™ PRO™
    PRO™

    PRO™

    A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.

    The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.

    Speed controlled thrusters are the best choice for joystick interaction.​

  • FLEXIBLE INSTALLATION FLEXIBLE INSTALLATION
    FLEXIBLE INSTALLATION

    FLEXIBLE INSTALLATION

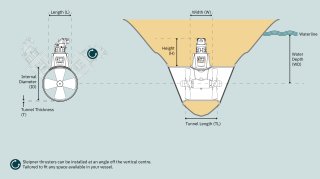

    Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.

  • GRAVITY FEED LUBRICATION GRAVITY FEED LUBRICATION
    GRAVITY FEED LUBRICATION

    GRAVITY FEED LUBRICATION

    The thruster gearleg is supplied with oil from a separate reservoir above the waterline to monitor oil levels.

  • FLEXIBLE COUPLING FLEXIBLE COUPLING
    FLEXIBLE COUPLING

    FLEXIBLE COUPLING

    Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.

  • TWIN COUNTER-ROTATING PROPELLERS TWIN COUNTER-ROTATING PROPELLERS
    TWIN COUNTER-ROTATING PROPELLERS

    TWIN COUNTER-ROTATING PROPELLERS

    Two counter-rotating propellers offer the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. Our twin-counter thruster range is the favorite among leading boatbuilders in high-end yachts.

Item code: SH550/386TC-BA60

SH550 is a powerful thruster with 550 kg continuous thrust, suitable for boats between 85-140 feet/ 25-40 meters. It can be mounted as a bow or stern thruster.

Its compact and efficient design ensures maximum power and minimal noise and vibrations, providing smooth and comfortable boat maneuvering.

A remote control is a popular accessory. See some of the important product and safety features below.

Read more
85-140 ft.
85-140 ft.
85-140 ft.
Contact us

Sleipner offers a wide range of hydraulic thrusters for installation in tunnels. These models are designed for larger recreational and commercial boats with a power range of 100-1400 kg, and can be mounted in both the bow and stern.

To ensure that all hydraulic components are compatible and maintain the same high quality, Sleipner offers complete hydraulic systems with guaranteed performance. All hydraulic thruster systems are delivered ready for use to provide a straightforward solution and the highest degree of quality assurance.



Hydraulic tank

A thruster will usually be the most demanding consumer among the hydraulic parts on board. Sleipner's hydraulic system is specially designed for ultimate flexibility to support all other hydraulic parts on board.

90L gulv_1@72dpi.png
  • Tank in powder-coated stainless steel
  • Soft mounting points to avoid structural noise from floor-mounted tanks
  • Internal splash plate that helps remove air from the oil
  • Sloping bottom in the tank with drain plug at the lowest point in floor-mounted tanks
  • All internal hydraulic connections on the tank come pre-installed
  • All internal electrical connections for thrusters are pre-wired and ready with splice connectors
  • Optional temperature-controlled water pump for oil cooler
  • Flexible configuration

Sleipner's hydraulic systems offer significant savings in labor costs and space as practically every required component comes pre-installed and wired. Sleipner's systems only require external hydraulic and electrical connections (which can only be done on board), saving time and money for the installer. A Sleipner system comes with all necessary drawings, installation manuals, system start-up manual, maintenance manuals, etc. to ensure easy and correct installation and a lifetime of reliability and easy service work.



Hydraulic pump

Sleipner's hydraulic thruster systems only use variable displacement piston pumps. They offer a high level of reliability, efficiency, and flexibility.

A selection of many variable load sensing displacement pumps offered by Sleipner



Benefits of a load sensing system

Load sensing means that the displacement of the pump is controlled by a pressure signal from the hydraulic control valves. The pump will then continuously sense whether more flow or pressure is needed for consumers and adjust the displacement accordingly. This means there is no need to constantly rely on electrical activation or pump large volumes of unused oil around the boat.

  • Reliable and proven system
  • Delivers only the flow and pressure actually needed at the time
  • Load sensing control on the pump is more reliable than an electrical clutch
  • Low heat development and energy loss
  • Highly efficient piston pumps
  • Low noise level in both drive and idle mode
  • Spark-proof for installation in gasoline areas



Support

Sleipner's hydraulic systems only use hydraulic components from well-known manufacturers to ensure reliability and easy access to spare parts and support worldwide.
