Thrusters

SE40 IP tunnel bow/stern thruster 12V

40kg thrust, on/off, ignition protection

  • Q-PROP™ Q-PROP™
    Q-PROP™

    Q-PROP™

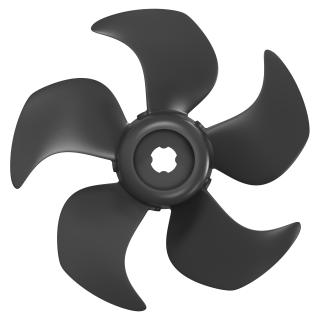

    The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

    • The expected noise reduction in average installations: 20-40%
    • Upgrade kits are available for most Sleipner thruster models with special adaptors
  • INTELLIGENT POWER CONTROL INTELLIGENT POWER CONTROL
    INTELLIGENT POWER CONTROL

    INTELLIGENT POWER CONTROL

    Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

  • IGNITION PROTECTION IGNITION PROTECTION
    IGNITION PROTECTION

    IGNITION PROTECTION

    Ignition-protected products are compliant with ISO 8846 to operate safely in hazardous environments where gasoline vapors or other flammable gases might be present.

  • OVERHEAT PROTECTION OVERHEAT PROTECTION
    OVERHEAT PROTECTION

    OVERHEAT PROTECTION

    When high temperatures are detected, On/off thrusters are automatically shut off to prevent overheating. PRO™ thrusters with speed control provide extended run-time by derating power to maintain temperature within safe levels.

  • FLEXIBLE INSTALLATION FLEXIBLE INSTALLATION
    FLEXIBLE INSTALLATION

    FLEXIBLE INSTALLATION

    Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.

  • SPLASH-PROOF SPLASH-PROOF
    SPLASH-PROOF

    SPLASH-PROOF

    This product is manufactured for installations in environments that may experience moist or occasional splashes.

  • ANALOG ANALOG
    ANALOG

    ANALOG

    Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.

  • GALVANIC SEPARATION GALVANIC SEPARATION
    GALVANIC SEPARATION

    GALVANIC SEPARATION

    Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.

  • SEALED DRIVE LUBRICATION SEALED DRIVE LUBRICATION
    SEALED DRIVE LUBRICATION

    SEALED DRIVE LUBRICATION

    The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.

  • SINGLE PROPELLER SINGLE PROPELLER
    SINGLE PROPELLER

    SINGLE PROPELLER

    A properly engineered single propeller will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range.

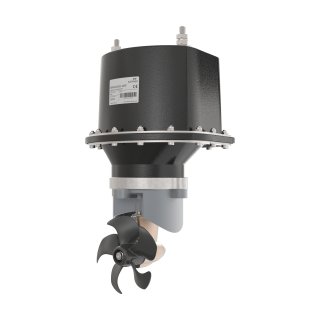

Item code: SE40/125S2-12IP

SE40 Ignition Protection is suitable for boats between 26-34 feet. With its 40-48 kg thrust, you get a safe and reliable thruster installation in boats with gasoline engines. Can be mounted in the bow and stern.

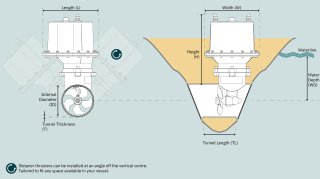

The thruster offers great installation flexibility as it can be mounted at any angle on the tunnel. Additionally, the electric motor can be rotated 90 degrees on the motor bracket.

It is galvanically isolated and features Sleipner's patented IPC technology for intelligent power control and safety. See more of the product features below.

Read more
26-34 ft.
26-34 ft.

Sleipner's tunnel thrusters are the world's top-selling thrusters resulting from over 35 years of development. Over the years, our tunnel thrusters have been installed in over 350,000 boats worldwide.


Bow and stern thruster

They are fitted either in a tunnel through the boat's bow or into a stern tunnel at the boat's stern. Available as standard version (on/off), PRO™ version (variable speed control), and IP PRO™ version (with ignition protection and variable speed control), extending from 20 kg to 300 kg of thrust.

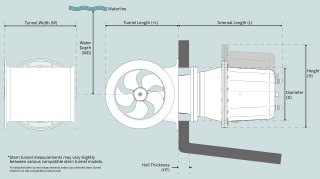

Sleipner's stern tunnels are designed with solid and durable fiberglass to enhance the thruster's performance and are installed effortlessly in the boat's transom. Additional cowls (sold separately) allow installation in boats with shallow drafts or obstructions on the stern.

The electric motors, solenoids, patented IPC control system, and mechanical parts of the propulsion system are all custom designed and built - utilizing the extensive experience gained through years of leadership in the global thruster market.



Docking has never been easier

Our PRO™ thruster models are equipped with speed control, giving you full variable control of the thruster. The speed control is more intuitive for you as a boater and makes for a quieter and more relaxed maneuver. If you install a dual thruster system (bow and stern), you get the revolutionary hold function, pinning the boat to the pier while docking.

SE PRO.jpg



Ignition protection

We offer ignition-protected thruster models to provide a reliable and safe installation in locations where the thruster motor may be exposed to water or gasoline fumes.

Our IP models have a hermetically sealed composite housing around all electric parts.

An additional advantage is that electric parts that could obtain water damage are also covered and protected, making these thrusters the ideal choice for stern thruster installations where ensuring that the thruster will always remain dry is difficult. The IP versions have all the benefits and proven reliability of our standard tunnel thrusters.
