Retract mechanical
Ø250mm TC 24V
Item code: 13 0650
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglishpdf
Retract mechanical
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.

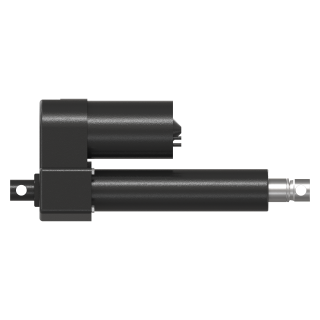

Actuator kit 24V
Cable actuator
Cylinder head cap screw
Sensor cable SR
Hex lock nut
Hex socket set screw flat point
Hex socket flat countersunk head screw
1 Adapter water proof SRV
Adaptor for seals SRV sensor
O-ring Ø14x3mm
Composite shaft for SRV sensor
O-ring Ø18x3mm
DIN 125 - A 4,3
ISO 7045 - M4 x 40
ISO 7045 - M4 x 55
2 Anode kit, aluminium aloy (Al-Zn-In)
Alu anode
Bolt

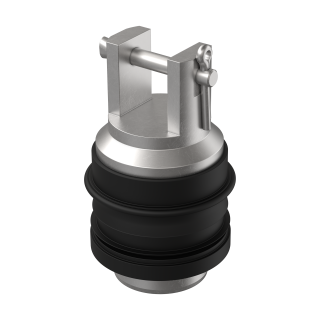

3 Retract drive shaft kit
Retaining ring for shaft
Deep groove ball bearings single row with two RS1 seals
Spring Retaining Ring
Rotary lip seal
Bearing Sintered
Parallel Key
Flexible drive shaft
Locking pin
Split Pin
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
