Gearlegs and brackets

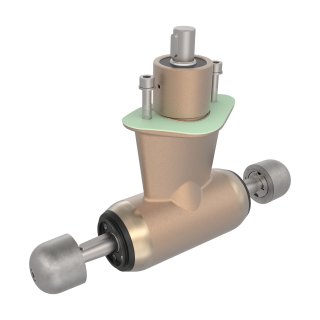

Gearleg SH360/SAC360
w/out propeller
-
GRAVITY FEED LUBRICATION
The thruster gearleg is supplied with oil from a separate reservoir above the waterline to monitor oil levels.
-
TWIN COUNTER-ROTATING PROPELLERS
Two counter-rotating propellers offer the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. Our twin-counter thruster range is the favorite among leading boatbuilders in high-end yachts.
Item code: SM-139896
Properties
GRAVITY FEED LUBRICATION
The thruster gearleg is supplied with oil from a separate reservoir above the waterline to monitor oil levels.
TWIN COUNTER-ROTATING PROPELLERS
Two counter-rotating propellers offer the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. Our twin-counter thruster range is the favorite among leading boatbuilders in high-end yachts.
| Features | Value |
|---|---|
| Twin Counter Rotating Propellers | Yes |
| Gravity Feed Lubrication | Yes |
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > Hydraulic > SH | SH360/300TC-BA19 SH360/300TC-BA23 |
Gearleg SH360/SAC360
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
DIN 912 - M10 x 60
DIN 127 - A 10
DIN 125 - A 10,5
Footnotes
- 5* For expired gearleg (before 2021) order art.no. 10 1220 oil plug ( one piece per gearleg)
Kits
-
Oil plug M8 x 12 with sealSM129384 10 1220
-
SM143716 20 1180 A
-
SM155029 SM155029
-
SM155033 SM155033
1 End cap SH360/400
DIN 912 - M10 x 30
Nord-lock M10
Lock Washer gear
DIN 988 - 30 x 42 x 0,1
Bearing lockin-nut
SKF 7206 BEGAP
DIN 3771 - 78 x 2 - NBR
Housing for bearings
DIN 3760 - A - 25 x 40 x 7 NBR Steel
DIN 6885 - A 8 x 7 x 28
Shaft for propeller
DIN 6885 - A 8 x 7 x 40

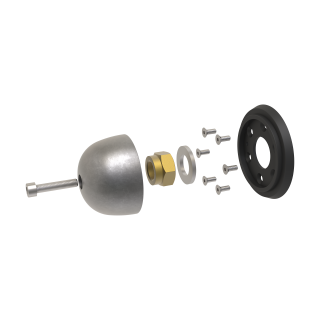

2 End cap kit SH360
Protector ring
DIN 7991 - M4x10 A4
DIN 125 - A 17
DIN 985 - M16x2
Anode-aluminium
DIN 912 - M6 x 30
Footnotes
- 5*/6* Can be ordered as a kit 20 1180A
Kits
-
SM143716 20 1180 A
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
