Tunnels for stern installation

Tunnel kit for stern thruster SE130/170/210 + SH240, Ø250mm

split tunnel assembly

Item code: 90150I

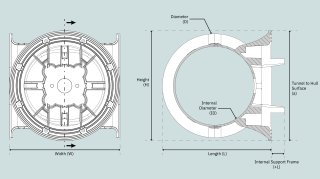

250mm stern tunnel with integrated support, suitable for thruster models SE130, SE170, SE210, and SH240.

The new 250mm tunnel features split-tunnel assembly for easier installation and integrated support for thruster motor and bracket, eliminating the need for an external support strut inside the boat. The split assembly makes it possible to mount the stern thruster from outside the transom, saving time and heavy lifting within crowded spaces.

See more of the significant product features below.



Read more
  • Tunnel halves snap together after mounting gearleg/propellers
  • Groves for application of sealant
  • Extra metal support brackets
  • Integrated support struts for each of the four motor bracket legs
