Accessories for retract
Tunnel kit retract Ø250mm T, complete
Item code: SM168098
Sparepart for | Value |
---|---|
Main products > Thrusters > DC > SR_SRV_SRL | SRVP130/250T-12V SRVP130/250T-24V |

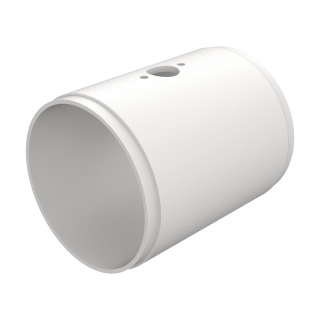

Tunnel kit retract Ø250mm T, complete
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Split pin
Locking pin
Drive shaft lower link
Bushing for drive pins
O-ring
Sleeve bearing
Thrust washer
Hex head screws
O-ring
Wype Ring

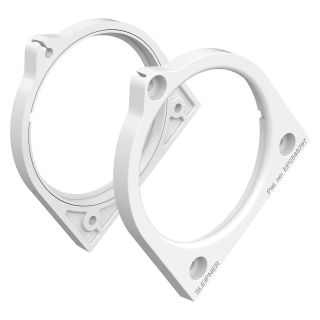

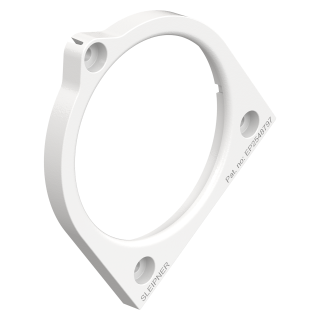

Turn ring

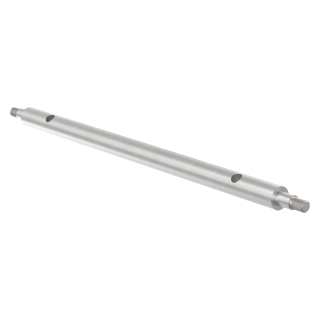

Lifting rod
Tunnel bracket
Sliding band
Flat washer without chamfer
Hex lock nut
Hex socket set screw w/ cone point
Hex socket flat countersunk head screw
Hex nut
Split pin
Split pin

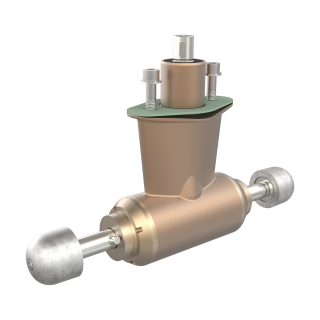

1 Gearleg SE130 w/out propeller
DIN 127 - A 10
DIN 125 - A 10,5
DIN 125 - A 17
DIN 985 - M16x2

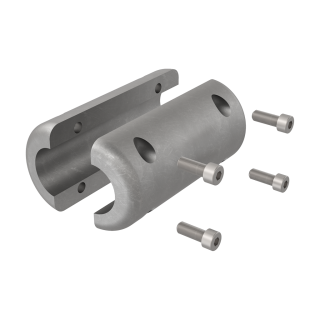

2 Anode kit, aluminium aloy (Al-Zn-In)

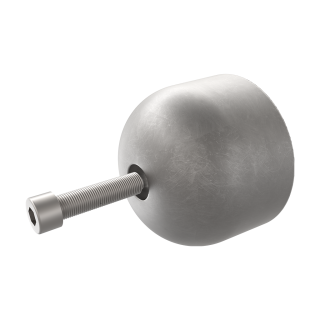

Alu anode
Bolt
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
