- Control panel for thruster, S-Link™, single lever, color LCD touch
Control panel
Control panel for thruster, S-Link™, single lever, color LCD touch
for variable speed thrusters
Item code: PJC421-LF90X
PJC421 single lever with external interactive color screen.
- Back-lit touch color LCD with instant feedback
- Built-in WiFi module
- Built-in alarm buzzer
- Plug & Play cables, waterproof and compact connectors
- Dedicated connector for IO signals
- Can combine DC/HYD/AC
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Commercial vessel, Sail boat |
-
Declaration of conformity (DoC), CE - Thruster Proportional Joystick Control PJC4xx 20.04.21
Conformity CertificateEnglishpdf -
LF90XS Control Lever Single

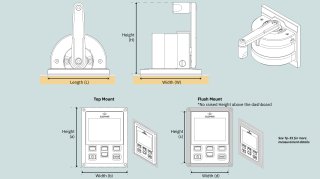

CAD FileEnglishstp -
DWG.file TP-35 Touch Panel - metadata
Technical drawingEnglishdwg -
PDF.file TP-35 Touch Panel - metadata
Technical drawingEnglishpdf -
Installation and User Manual - PJC421, PJC422, TP-35
Installation Manual, User ManualEnglishpdf -
Service and Support Manuals, Fault Codes
Service/Support ManualEnglishpdf -
STP.fil TP-35 Top mount
CAD FileEnglishstp -
STP.fil TP-35 Flush mount
CAD FileEnglishstp -
Cut Out Template, PJC421-LF90X & PJC422-LF90X
Cut Out TemplatesEnglishpdf -
Installation and User Manual - PJC421, PJC422, TP-35 - ITALIAN
Installation Manual, User ManualItalianpdf -
Installation and User Manual - PJC421, PJC422, TP-35 - SPANISH
Installation Manual, User ManualSpanishpdf -
Installation and User Manual - PJC421, PJC422, TP-35 - FRENCH
Installation Manual, User ManualFrenchpdf -
Installation and User Manual - PJC421, PJC422, TP-35 - GERMAN
Installation Manual, User ManualGermanpdf
Control panel for thruster, S-Link™, single lever, color LCD touch
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
1 TP-35 Touch Panel
Protective cover
Cover frame
Screw
Panel
Gasket
Joystick Cable
2 LF90XS Control Lever Single, assembly
LF90XS
Joystick Cable
