Power steering
Power steering PS600 6,7 l/min 230/400V-3ph AC
Complete tank
Item code: 74350-AC3

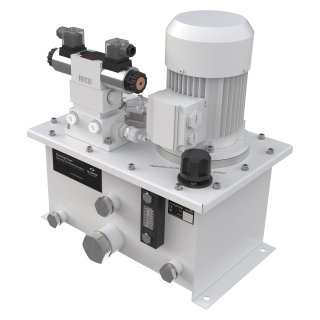

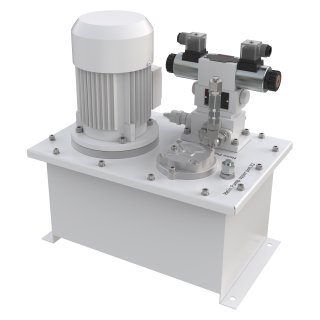

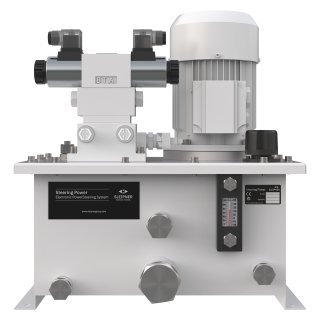

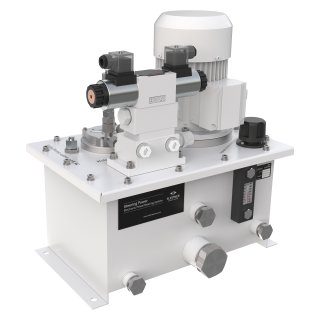

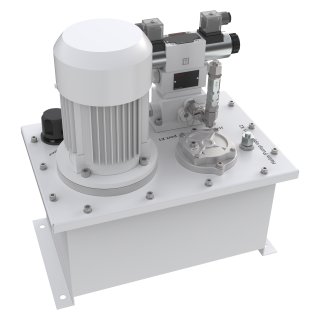

Power Steering PS600
The PS600 is suitable for joystick and autopilot steering of commercial vessels up to 15 meters. To ensure long life and high operational reliability, an adjustable auto-stop function is built into the control unit which significantly reduces the running time of the pump and motor, and thereby power consumption as well.
The system will automatically start on input signals from either the joystick or autopilot, and automatically shut down 30 seconds after last input. Automatic rudder end stop switches are standard, and is an important feature to reduce the load and stress on the system.
To add emergency steering capability, in case of power failure, simply add a standard Sleipner helm pump to the system. Two PS600 systems can be run in parallelle, also in a DC / AC configuration for added redundancy.
The system is delivered with all components installed and tested from our ISO-certified factory in Norway. Choose bestween DC or AC power, hydraulic pump volume and the optional temperature and oil level sensors.
Features:

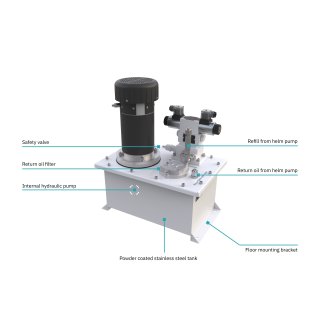

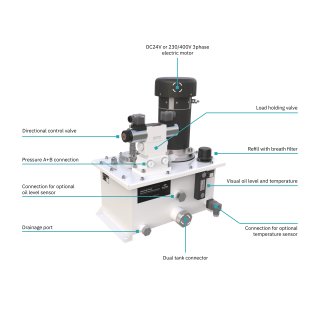

- Compact oil tank with return filter, pump, valve and electric motor
- 600W 24V or 550W 230/400VAC electric motor options
- Fits steering cylinder volume from 345cm³ to 1200cm³
- When using autopilot, no external pump is required
- Auto stop function on electric motor (30 sec standard, adjustable)
- Selectable pump of 6.7, 4.3 or 3.2 liters per. minute
- Prepared for joystick, autopilot and manual control
- Operating pressure is 50 bar.

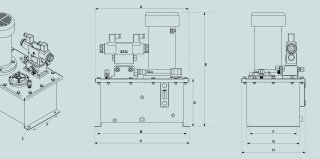

- Dimensions DC version: 490x406x272mm (HxWxD)
- Dimensions AC version: 430x406x272mm (HxWxD)
- Tank volume: 10 L
-
