Cylinders
Hydraulic cylinder SP500
Item code: 71500

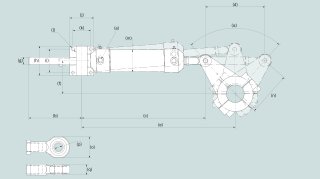

| Dimensions | Value |
|---|---|
| (a) | M22x1,5 |
| (b) | 141.15mm / 5.56in |
| (c) | 495.5mm / 19.51in |
| (d) | "200" |
| (g) | 25mm / 0.98in |
| (h) | 110mm / 4.33in |
| (i) | 86mm / 3.39in |
| (j) | 120mm / 4.72in |
| (k) | 97mm / 3.82in |
| (l) | 10mm / 0.39in |
| (m) | 100mm / 3.94in |
| (o) | 50mm / 1.97in |
| (p) | 20mm / 0.79in |
| (q) | 25mm / 0.98in |
| α | 84 |
| Extra custom dimensions | Value |
|---|---|
| e1 (with 150mm tiller arm) | 596 |
| n1 (with 150mm tiller arm) | 150 |
| n2 (with 180mm tiller arm) | 180 |
| f1 (with 150mm tiller arm) | 111.5 |
| e2 (with 180mm tiller arm) | 599 |
| f2 (with 180mm tiller arm) | 147.5 |
| Hydraulic steering | Value |
|---|---|
| Recommended hose diameter (inside) | 5/8" |
| Cylinder volume (ccm) | 1170 |
| Working pressure (bar) | 50 |
| Max rudder torque (bar) with 180mm tiller arm | 500 |
| Max rudder torque (bar) with 150mm tiller arm | 440 |
| Oil | Value |
|---|---|
| Oil type specifications | ISO-VG-15, DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Sail boat |
-
