Cylinders
Hydraulic cylinder SP250
Item code: 71220

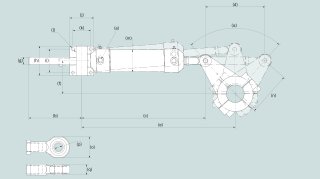

| Dimensions | Value |
|---|---|
| (a) | 3/8" |
| (b) | 178.5mm / 7.03in |
| (c) | 416.5mm / 16.40in |
| (d) | "200" |
| (g) | 25mm / 0.98in |
| (h) | 100mm / 3.94in |
| (i) | 80mm / 3.15in |
| (j) | 80mm / 3.15in |
| (k) | 60mm / 2.36in |
| (l) | 10.5mm / 0.41in |
| (m) | 75mm / 2.95in |
| (o) | 44mm / 1.73in |
| (p) | 16mm / 0.63in |
| (q) | 21mm / 0.83in |
| α | 84 |
| Extra custom dimensions | Value |
|---|---|
| e1 (with 150mm tiller arm) | 520 |
| f1 (with 150mm tiller arm) | 111.5 |
| f2 (with 180mm tiller arm) | 147.5 |
| e2 (with 180mm tiller arm) | 520 |
| n1 (with 150mm tiller arm) | 150 |
| n2 (with 180mm tiller arm) | 180 |
| Hydraulic steering | Value |
|---|---|
| Cylinder volume (ccm) | 565 |
| Recommended hose diameter (inside) | 1/2" |
| Max rudder torque (bar) with 150mm tiller arm | 210 |
| Working pressure (bar) | 50 |
| Max rudder torque (bar) with 180mm tiller arm | 250 |
| Oil | Value |
|---|---|
| Oil type specifications | ISO-VG-15, DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Sail boat |
-
