Cylinders
Hydraulic cylinder 90/32x200, Ø20
can not be DNV certified
Item code: 9032-200-7-10

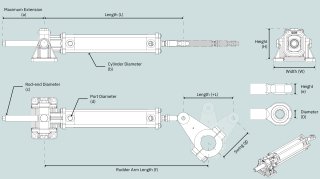

| Dimensions | Value |
|---|---|
| (H) Height | 137mm / 5in |
| (L) Length | 556mm / 21in |
| (+L) Additional Length | 200mm / 7in |
| (W) Width | 170mm / 6in |
| (D) Diameter | 20mm / 0in |
| (a) | 135mm / 5in |
| (b) | TBAmm |
| (c) | 32mm / 1in |
| (d) | TBAmm |
| (e) | 25mm / 0in |
| (f) | 656mm / 25in |
| (g) | 150mm / 5in |
| Hydraulic steering | Value |
|---|---|
| Working pressure (bar) | 85 |
| Recommended hose diameter (inside) | 1/2" |
| Cylinder volume (ccm) | 1287 |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Commercial vessel, Motor boat, Sail boat |
| Compliance | Value |
|---|---|
| DNV type approved | Yes |
-
