Windlasses

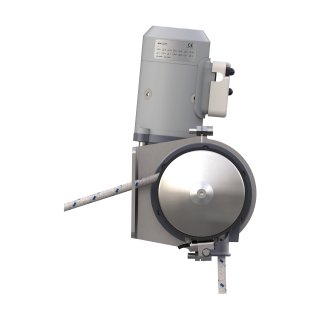

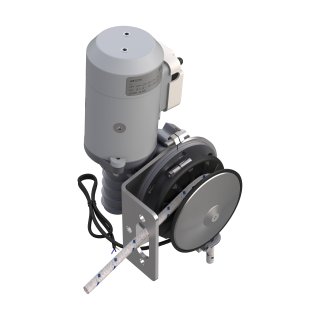

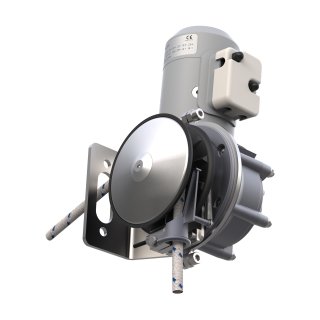

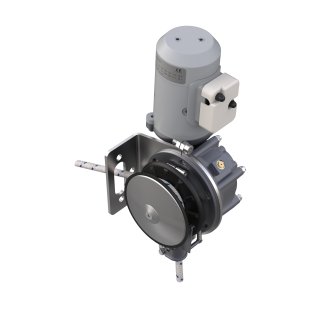

Maxi 43 windlass, 1500W 24V, port side

for 14-16mm lead anchor line

  • PARKING-MODE PARKING-MODE
    PARKING-MODE

    PARKING-MODE

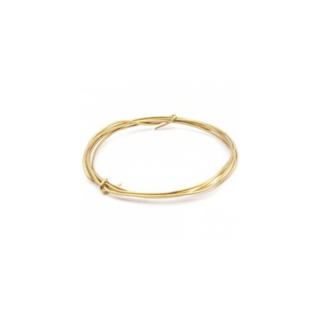

    With an end-stop sensor and brass wire ring on the anchor line, the anchor automatically stops at the water line in parking mode. This allows the anchor to rinse away mud or any seabed materials before carefully settling the anchor in its final secure position.

  • AUTOMATIC FREE FALL CONTROL AUTOMATIC FREE FALL CONTROL
    AUTOMATIC FREE FALL CONTROL

    AUTOMATIC FREE FALL CONTROL

    The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining slight resistance ensuring the line doesn't rush to the bottom. It releases as much line as required for the water depth and length for the mooring.

  • PWM CONTROL PWM CONTROL
    PWM CONTROL

    PWM CONTROL

    Safety, control, and reliability are the most important factors in securing your boat. Accordingly, Sleipner integrates pulse-width modulation systems in the windlass control unit to monitor power control while in use.

  • ANALOG ANALOG
    ANALOG

    ANALOG

    Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.

Item code: 43-24115

Anchor windlass for internal mounting, suitable for boats up to 70 feet. Maxi 43 is a powerful windlass with features such as automatic free fall and parking mode.

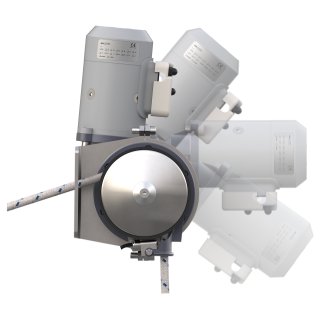

The mounting bracket can rotate 360 ​​degrees, which means that you have numerous mounting options: against the transom, front bulkhead, or hanging horizontally below deck. The electric motor and rope guide are rotatable, simplifying the installation considerably by enabling mounting on surfaces with a different angle in relation to the transom. Available in 12V and 24V.

Read more
0-70 ft.
0-70 ft.

The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining a slight resistance ensuring the line doesn't rush to the bottom. Therefore, it releases as much line as required for the water depth and length for the mooring.

Parking mode provides another user-friendly feature. With an end-stop sensor and brass wire ring in the line, the anchor automatically stops at the water line or 'rinsing position'. This allows the anchor to clean away any mud, seagrass, or other sea bed materials before carefully settling the anchor in its final secure position.

Accessories are available in several variants to enable tailored solutions for various boat types. The anchor windlass requires an MCU control box, circuit breaker, control panel, and other accessories such as a thru-hull fitting and anchor line.



Deciding to mount on the starboard or port side could depend on space. With the Maxi 43 and Maxi 44, you can decide which side you want to install the gypsy. We recommend having the gypsy facing towards the middle of your vessel instead of out towards the hull. This will allow easier access for service and maintenance. However, this depends on your boat's construction and your preferences.

  • Maxi 43 has the gypsy fitted starboard, ideal for mounting on the port side (see image above)
  • Maxi 44 has the gypsy fitted port, ideal for mounting on the starboard side

Properties

PARKING-MODE

PARKING-MODE

With an end-stop sensor and brass wire ring on the anchor line, the anchor automatically stops at the water line in parking mode. This allows the anchor to rinse away mud or any seabed materials before carefully settling the anchor in its final secure position.

AUTOMATIC FREE FALL CONTROL

AUTOMATIC FREE FALL CONTROL

The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining slight resistance ensuring the line doesn't rush to the bottom. It releases as much line as required for the water depth and length for the mooring.

PWM CONTROL

PWM CONTROL

Safety, control, and reliability are the most important factors in securing your boat. Accordingly, Sleipner integrates pulse-width modulation systems in the windlass control unit to monitor power control while in use.

ANALOG

ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.
