Windlasses

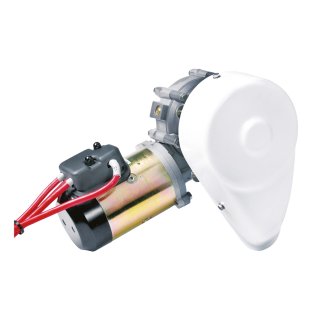

Maxi 34-G windlass, 1500W, 24V, starboard

for 14-16mm lead anchor line

  • PARKING-MODE PARKING-MODE
    PARKING-MODE

    PARKING-MODE

    With an end-stop sensor and brass wire ring on the anchor line, the anchor automatically stops at the water line in parking mode. This allows the anchor to rinse away mud or any seabed materials before carefully settling the anchor in its final secure position.

  • AUTOMATIC FREE FALL CONTROL AUTOMATIC FREE FALL CONTROL
    AUTOMATIC FREE FALL CONTROL

    AUTOMATIC FREE FALL CONTROL

    The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining slight resistance ensuring the line doesn't rush to the bottom. It releases as much line as required for the water depth and length for the mooring.

  • PWM CONTROL PWM CONTROL
    PWM CONTROL

    PWM CONTROL

    Safety, control, and reliability are the most important factors in securing your boat. Accordingly, Sleipner integrates pulse-width modulation systems in the windlass control unit to monitor power control while in use.

  • ANALOG ANALOG
    ANALOG

    ANALOG

    Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.

Item code: 34-4G-24115

Anchor windlass for external mounting/side-mounting suitable for boats up to 70 feet with a built-in bathing platform or extension. Maxi 34G is a windlass with features such as automatic free fall and parking mode. Available in 12V or 24V.

0-70 ft.
0-70 ft.

The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining a slight resistance ensuring the line doesn't rush to the bottom. Therefore, it releases as much line as required for the water depth and length for the mooring.

Parking mode provides another user-friendly feature. With an end-stop sensor and brass wire ring in the line, the anchor automatically stops at the water line or 'rinsing position'. This allows the anchor to clean away any mud, seagrass or other sea bed materials before carefully settling the anchor in its finial secure position.

The Maxi 34-3G is for mounting the port side, with the electric motor inside the vessel and the line wheel facing the bathing platform starboard.

The Maxi 34-4G is for mounting on the starboard side with the electric motor on the inside and the line wheel facing the bathing platform port.

Accessories are available in several variants to enable tailored solutions for various boat types. The anchor windlass requires an MCU control box, circuit breaker, and control panel and other accessories such as hull penetration, anchor line, and anchor rode.



Properties

PARKING-MODE

PARKING-MODE

With an end-stop sensor and brass wire ring on the anchor line, the anchor automatically stops at the water line in parking mode. This allows the anchor to rinse away mud or any seabed materials before carefully settling the anchor in its final secure position.

AUTOMATIC FREE FALL CONTROL

AUTOMATIC FREE FALL CONTROL

The automatic free-fall function allows the release of the windlass anchor line in a controlled manner, maintaining slight resistance ensuring the line doesn't rush to the bottom. It releases as much line as required for the water depth and length for the mooring.

PWM CONTROL

PWM CONTROL

Safety, control, and reliability are the most important factors in securing your boat. Accordingly, Sleipner integrates pulse-width modulation systems in the windlass control unit to monitor power control while in use.

ANALOG

ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.
