- SPS60E AC Electric Stabilizer Actuator
Actuators
SPS60E AC Electric Stabilizer Actuator
230-1ph/400-3ph VAC
-
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
-
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
Item code: SPS60E

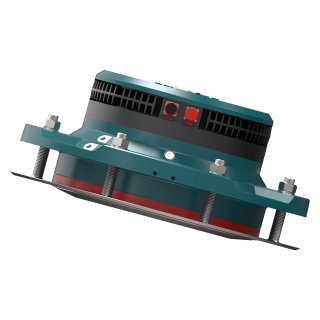

The SPS60E actuator powers Sleipner’s Vector Fins™ on large yachts in the 19–24 meter range, driving precise fin control to minimize roll and deliver a smoother, more stable ride. Known as one of the most compact and energy-efficient actuators on the market, it’s designed for easy installation and seamless integration.
Powered by 230V (single-phase) or 400V (three-phase) AC, the SPS60E adjusts fin positioning in real-time with advanced algorithms, making it the ideal choice for large yachts demanding high-performance stabilization in a space-efficient design.
Properties
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
| Main power | Value |
|---|---|
| Power supply | 230V AC 1ϕ, 400V AC 3ϕ |
| Electric fin actuator power consumption | Value |
|---|---|
| Peak power per actuator | 5.5 |
| Features | Value |
|---|---|
| 360° Installation | Yes |
| Any Speed | Yes |
| Patented noise reduction | Yes |
| Plug and play signal cables | Yes |
| 4-fin configuration available | Yes |
| Dynamic position mode | Yes |
| Eco mode | Yes |
| Dock mode | Yes |
| On water service possible | Yes |
| Instant on | Yes |
| Coordinated turn control | Yes |

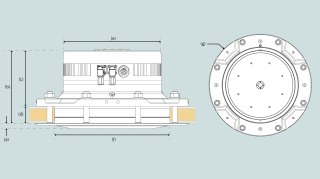

| Dimensions | Value |
|---|---|
| (a) | 16.8mm / 0.66in |
| (b) | 232mm / 9.13in |
| (c) | 175mm / 6.89in |
| (d) | 60mm / 2.36in |
| ØE | 350mm / 13.78in |
| ØF | 408mm / 16.06in |
| ØG | 564mm / 22.20in |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Commercial vessel |
| Typical vessel size | 19-24m / 62.34-78.74ft |
| Product weight | Value |
|---|---|
| Net weight | 118kg / 260.15lbs |
-
STP.file SPS60E - V3-14 Port AC version - simplified
CAD FileEnglishstp -
User Manual, SPS-E
User ManualEnglishpdf -
Design and Installation Planning Guide for eVision Stabilizers
Sales Documentation, Marketing DocumentationEnglishpdf -
STP.file SPS60E V4-12HS Port AC version - simplified
CAD FileEnglishstp -
STP.file SPS60E V4-12HS Starboard AC version - simplified
CAD FileEnglishstp -
User Manual, Electric Stabilizers
User ManualEnglishpdf -
STP.file SPS60E - V3-14 Starboard AC version - simplified
CAD FileEnglishstp -
Installation Manual, eVision Stabilizer (SPS60E, SPS80E)
Installation ManualEnglishpdf -
Brochure Electric Vector Fins
Product catalogue & brochuresEnglishpdf -
STP.file SPS60E AC - V4-15 Vector fin Port - simplified 3D
CAD FileEnglishstp -
STP.file SPS60E AC - V4-15 Vector fin Starboard - simplified 3D
CAD FileEnglishstp
SPS60E AC Electric Stabilizer Actuator
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
1 Electric drive unit SPS60E
DIN 912 - M3 x 6
Position indicator protection ring
O-ring
Position indicator cover
Position indicator arrow
DIN 7991 - M6x20 A4
Breathable vent M12x1,5
Protection top cover painted
Encoder cable kit
Encoder Multiturn SE70
DIN 3771 - 266 x 3
DIN 912 - M10 x 35
Nord-lock M10
Position indicator shaft
KMT 4
DIN 625 SKF -6203
DIN 471 - 17x1 C 75 S
Connector
Connector
2 Gear Drive unit SPS60E
DIN 912 - M10 x 50mm 12.9
Harmonic Drive CSG58 - 120 ratio
DIN 912 - M10 x 25mm A2
Nord-lock M10 A4
DIN 3771 - 214,5 x 3mm - FKM 75-80
DIN 3771 - 307 x 3mm FKM 75-80
DIN 912 - M14 x 35mm 12.9
DIN 934 - M20 A4
DIN 128 - A20 A4
Emergency lock sticker
DIN 7991 - M20x130mm A4
SPSE Ground Bond Wire M10 L=150
Oil plug
BSP gasket
DIN 908 w/ magnet
DIN 3771 - 250 x 3mm FKM 75-80
DIN 3771 - 284 x 3mm - FKM 75-80
DIN 912 - M10 x 45mm A4
Lip seal 200x210x4,2 SPU
Double lip seal Ø200x215x10,8 SPU
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
Typical power consumption
At anchor complete system (both actuators together)
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 2.11 | 1.00 | 0.24 |
| 3.5sec | 2.05 | 1.05 | 0.24 |
| 4.0sec | 1.87 | 1.09 | 0.25 |
| 4.5sec | 1.71 | 0.94 | 0.25 |
| 5.0sec | 1.52 | 0.86 | 0.26 |
| 5.5sec | 1.40 | 0.86 | 0.25 |
| 6.0sec | 1.28 | 0.79 | 0.26 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 2.58 | 1.15 | 0.30 |
| 3.5sec | 2.73 | 1.23 | 0.32 |
| 4.0sec | 2.50 | 1.27 | 0.31 |
| 4.5sec | 2.29 | 1.30 | 0.32 |
| 5.0sec | 2.05 | 1.20 | 0.33 |
| 5.5sec | 1.90 | 1.10 | 0.33 |
| 6.0sec | 1.74 | 1.01 | 0.33 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 3.17 | 1.37 | 0.35 |
| 3.5sec | 3.26 | 1.43 | 0.35 |
| 4.0sec | 3.06 | 1.50 | 0.35 |
| 4.5sec | 2.86 | 1.54 | 0.37 |
| 5.0sec | 2.51 | 1.42 | 0.37 |
| 5.5sec | 2.30 | 1.30 | 0.37 |
| 6.0sec | 2.13 | 1.20 | 0.38 |
Peak power per actuator: 5,5kW
Notice:
This depends on many factors, including the boat's roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
-
