Actuator kit for Vector Fins™ VFS1450
-
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
-
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
-
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
-
HYD
Powered by hydraulic pressure.
Item code: SPS92B
The height inside a boat is often a critical measurement when installing stabilizing systems in modern boats.
Sleipner's SPS92 actuators for Vector fins™ are up to 75 percent more compact than others, constructed for easy installation and minimal noise reproduction.
Silent and Reliable Construction
Technical design benefits
- Precision machining and assembly secures a long lifetime and durability.
- No additional center lock. This is automatic in the standard hydraulic system – very safe due to the hydraulics having extreme safety limits – actually stronger than the shaft.
- Dual cylinders provide a balanced load, unlike single-cylinder solutions and less bearing load, allowing for a more compact shaft bearing assembly.
- Purpose-designed dual shaft sealing - superior to standard Simmer Ring lip seals.
- Internal hydraulic connections on actuators are pre-fitted. The installer only fits non-moving hoses/pipes - Easier and safer.
- No complex adjustments are required to set up a controller with lots of factors. These are set automatically on the first sea-trial of the boat.
- Bearing the lifetime lubricated SKF high-load bearings transferring the cylinder forces to the fins, have a built-in tightening system. This means that when you on most brands often need to change all bearings to remove a small noise from minimal bearing wear, you can instead tighten them again and keep going—saving both cost and hassle to get the bearings changed.
- Vector fins are easily and quickly installed and removed from the outside for best convenience, such as transport or other haul-out situations.
- Defined shaft-shear point in cDefined shaft-shear point in case of the fins accidentally hitting something.
- All wet parts are made of stainless steel.

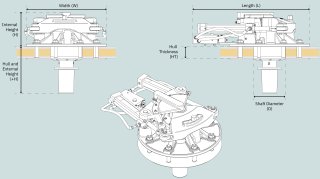

Size comparison
Size from side view compared to other brand actuators for similar fin size:
Properties
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
HYD
Powered by hydraulic pressure.
-
