Actuators for Vector Fins™

Actuator kit for Vector Fins™ VF650/VF800

For stabilizer fins VF650 and VF800

  • 360° INSTALLATION 360° INSTALLATION
    360° INSTALLATION

    360° INSTALLATION

    Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.

  • S-LINK™ S-LINK™
    S-LINK™

    S-LINK™

    S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.

    • Compact and waterproof plugs
    • Keyed and color-coded connectors to ensure correct and easy installation
    • Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
  • HYD HYD
    HYD

    HYD

    Powered by hydraulic pressure.

Item code: SPS55B

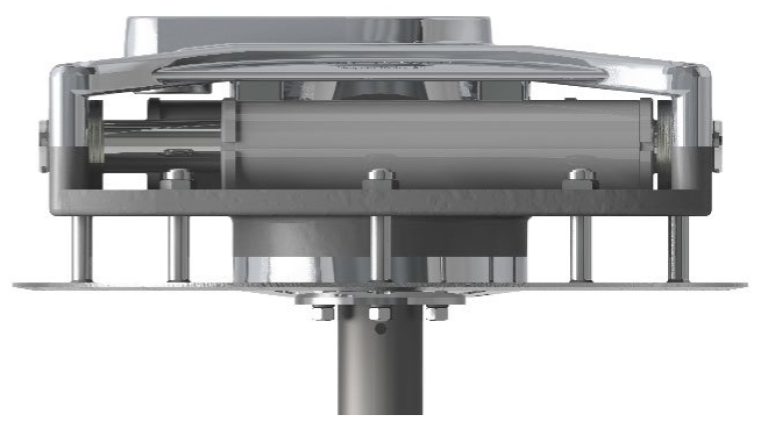

The SPS55 actuators for Vector fins™ are incredibly compact and silent, designed to fit in small available spaces in modern boats below 70 feet/ 20 meters.

The actuators are produced to be reliable and hassle-free, ensuring quiet operation that satisfies an owner-operated vessel's needs.

0-70 ft.
0-70 ft.

The most compact fin stabilizer actuator ever




Technical design benefits

  • The squared base plate provides a large load distribution area to the hull while installing in tight spaces between stringers and bulkheads.
  • Dual, balanced cylinders provide symmetrical load and force.
  • The actuator can be installed in any direction in the boat; the fin angle is independent of the actuator's direction.
  • No moving hoses at all secures leakages and potential wear and simplifies the installation process.
  • Oversized bearings for lifetime operation with only a minimal level of maintenance.
  • Rack and pinion drive connection for quiet, reliable, long-life operation, with easy service when needed after thousands of operational hours.
  • The Vector fins are quickly and easily installed and removed from the outside for best convenience, such as transport or other haul-out situations.
  • Defined shaft-shear point in case of the fins accidentally hitting something.
  • All wet parts in stainless steel.

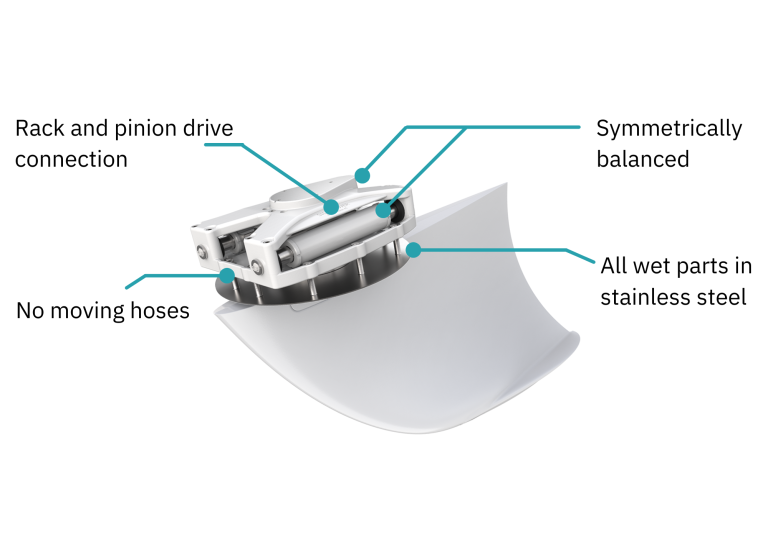

Illustration of the technical benefits of Sleipner's actuators for vector fins stabilizers

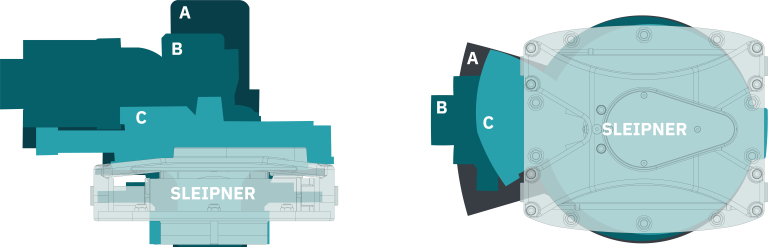

Size comparison

Size from side view (left) and top view (right) compared to other brand actuators for similar fin size:


Properties

360° INSTALLATION

360° INSTALLATION

Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.

S-LINK™

S-LINK™

S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.

  • Compact and waterproof plugs
  • Keyed and color-coded connectors to ensure correct and easy installation
  • Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
HYD

HYD

Powered by hydraulic pressure.
